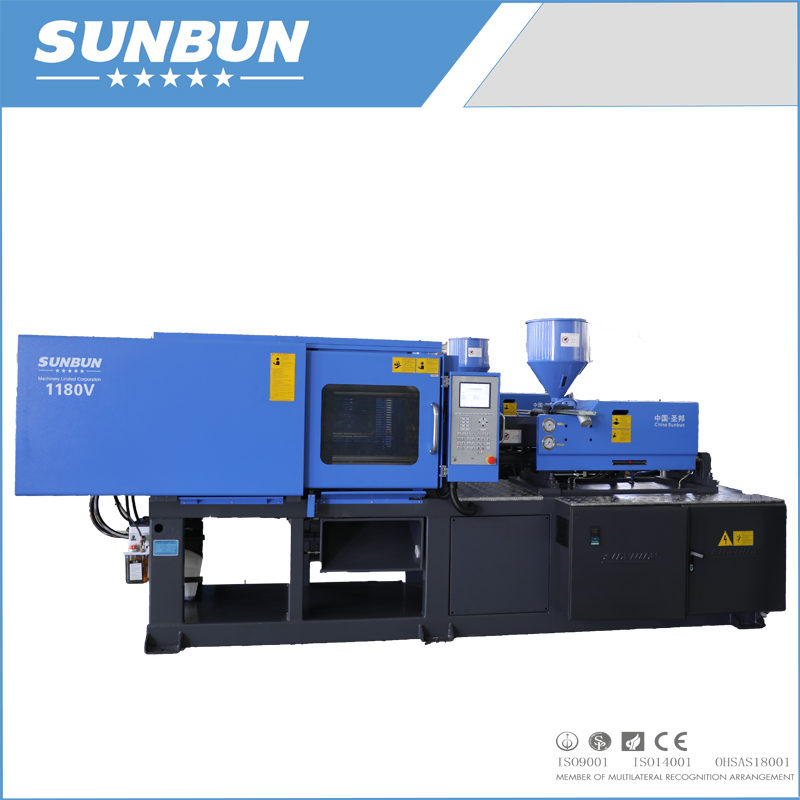

SB1180J6 118T Servo Motor Injection Molding Machine

Sunbun 118T servo motor injection molding machine
More Details

SB J6 Series Servo Plastic Injection Molding Machine



 The most advantance double CPU control technology is adpoted



 100 MCAN digital communication is used for controlling machine movement with higher control precision and faster response speed



 Equipped with high-end new model servo motor . Featured by high torque . Low noise and longer Durability



 High Response closed loop control mode make the system pressure and flow stable and accurate



 The corresponding power is outputted according to system load . It's more energy saving . The oil temperature is low .



 The use of cooling water is reduced . The services life of hydraulic oil and hydraulic parts is enhanced and repetitive precision is enhanced



Sunbun, Your best high speed high precision injection molding machine.







sk 140t servo motor injection molding machine

Injection part

Item/typeUnitSB1180 J6SB1380 J6
Screw type ABCDABCD
Screw diametermm3638404536384045
Screw diame-ter ratioL/D22.521201822.5212018
Theoretical injection volumecm³162181201254188209232294
Injection volume (PS)g148165182231171190211267
Injection pressureMPa207188168 132207186168132
Injection strokemm264264
Maximal Rotational Speed of Screwr/min180220

Clamping part

Item/typeUnitSB1180 J6SB1380 J6
Clamp TonnageKN11801380
Toggle strokemm310365
Distance between tie barsmm×mm360X360410X410
Maximum mould heightmm380450
Minimum mould heightmm120150
Ejection strokemm12085
Ejector force forwardKN4545
Amount of die thimblePcs1+41+4

Others

去格式

Item/typeUnitSB1180 J6SB1380 J6
System pressureMPa1616
Motor powerKW11/11/1411/11/14
Heater powerKW7.57.5
Oil tank capacityL260280
Boundary dimension(L×W×H)m4.2X1.4X1.74.6X1.4X1.75
Machine weightTon3.84.5
Side dimension of the molding board

545X545

620X620
