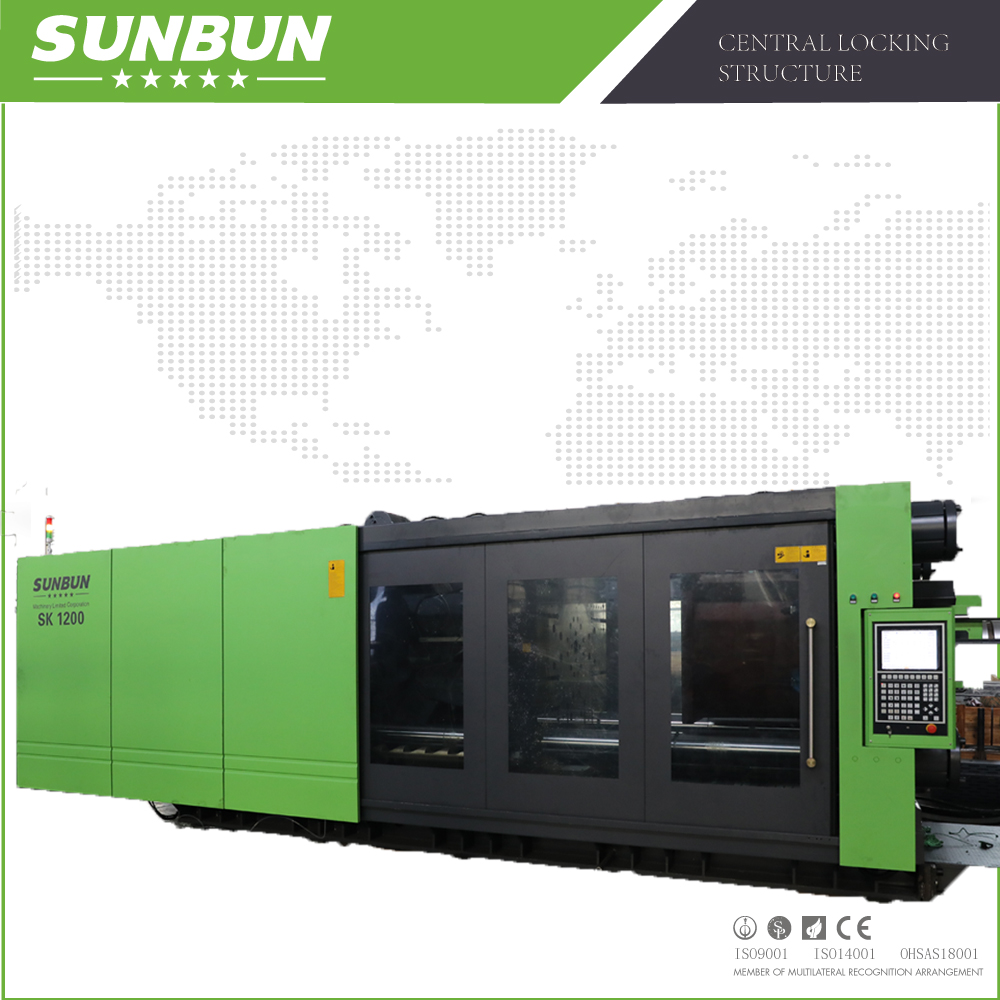

SK 1200T Servo Motor Injection Molding Machine

Central Locking Structure;With 1200T Make 1300T Product
More Details

Sunbun,您最好的高速高精度注塑机。



SK系列。从  140T-2800T  作为SUNBUN集团最新一代的注塑机,具有机械中央锁定结构。与市场上99.9%的注塑机不同



凭借  100%的夹紧力  和  更长的打开行程  ,可以使用更小的机器制造更大的产品。  与普通机器相比,节省材料2%-6%,在所有客户中都享有很高的声誉。



中国Sunbun SK系列230T台式小型塑料注射成型机。



 台式家用用于电气零件制造。标准速度从111 mm / s开始。



良好的塑化。CE ISO UL认证的优质注塑机





●  夹紧力比为100%,比传统方法高10%-20%



●  减少成品上的鳍片



●  传统1节省了2%-6%的原材料



●  有效生产模具,模板和拉杆



● 笔画比Morlam One大10%-20%



●  CoolIng减少的变形



注塑件

物品种类单元SK1200 / C8900SK1500 / C10900
螺丝类型 一个Cd一个Cd
螺丝直径毫米100110120130110120130140
螺杆直径比左/右24.42220.218242220.318
Theoretical injection volumecm³434352555691
7340
5236623273148482
Injection volume (PVC)g29073588434151662907358843415166
Maximum rate for inject-ion to aircm³/s49961674510804996167451080
Injection pressureMPa219178147117219178147117
Injection strokemm502502
Maximum injection speedmm/s8686
Maximal Rotational Speed of Screwr/min129129

Clamping part

Item/typeUnitSK850 / C7000SK1000 / 7000
Clamp TonnageKN850010000
Toggle strokemm11001100
Distance between tie barsmm×mm1120x10301120x1030
Maximum mould heightmm11001100
Minimum mould heightmm450450
Ejection strokemm270300
Ejector force forwardKN166229
Ejector force backardKN113167
Amount of die thimblePcs1+201+16

Others

Item/typeUnitSK850 / C7000SK1000 / 7000
System pressureMPa1616
Motor powerKW45+3745+45
Heater powerKW50.150.1
Quantity of temperature-control zones 1+51+5
Bucket capacitykg100100
Oil tank capacityL12001200
Boundary dimension(L×W×H)m10x2.7x310x2.7x3
Machine weightTon384
Side dimension of the molding board sk 850t伺服电机注塑机sk 850t伺服电机注塑机

INJECTION SYSTEM

  • The enhanced double-cylinder dual-extruding enjection structure will produce a lower back pressure in oil return during ejection. have a quicker injection speed and longer service life



  • The dual linear-guide , double displacement balanced stand can improve machine barrel accuracy



  • Precise screw design will dramatically improve the injection accuracy and effectively reduce the defective rate.  (38/42 Crmoal)



  • The optioncal pneumatic nozzle imported with orginal package has a flexible switch device and reliable seal



  • The cylinder with thicker wall and a high power heater can ensure a high plasticizing efficiency



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine

HYDRAULIC SYSTEM

  • With international High Speed Storage motor and Hydraulic Components ensure fast , effcient and long life operation



  • Modualr design for High-Response oil circult and hydraulic valve plate Which have a large oil circule and free of damp effectively reduce pressure loss , speed up system response ability



  • Original germany oil pipe and seals avoid oil leak.



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine

ELECTRONIC CONTROL

  • The whole electrionic control system is design for full electric and high speed injection molding machine



  • Apply Up-To-Date System,  New hardware design,  intelligent interactive interface ,  A CPU for fast arithmetic speed



  • Using EtherCAT/CAN  All-Date Communication technology Show clear iprovement in all technical indexes. Actsmore accurately in pressure and flow rate control



  • 保留互联网管理系统和能耗显示,可启用高级控制模式。



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine

夹紧系统

  • SK系列采用向外拨动和出色的设计理想。四列之间的栏空间很大。这是不同行业所需要的。



  • 超大开放冲程比正常冲程大10%-20%。更适合深腔产品



  • QT500-7型模板坚固耐用,可长期使用。



  • 采用高精度,大规模转移,结构紧凑的齿轮调节环,方便客户调节模具厚度
