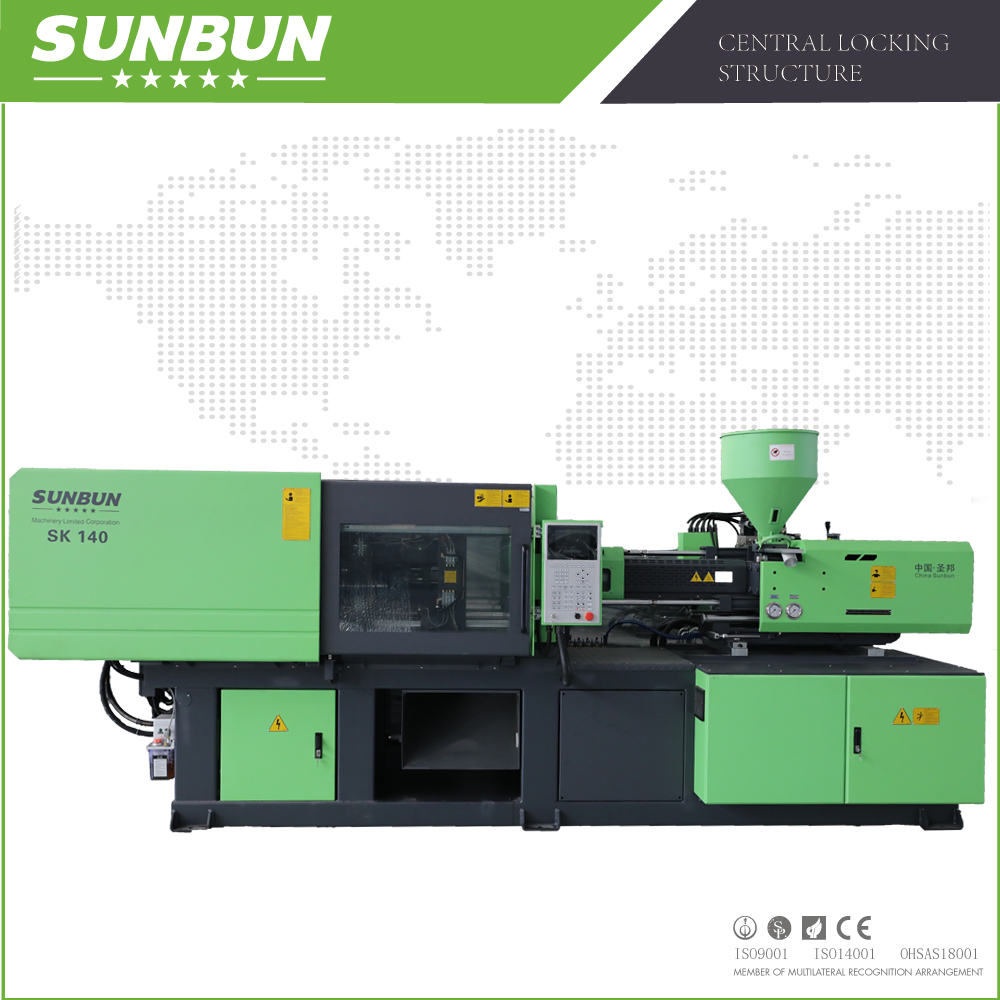

Sunbun, Your best high speed high precision injection molding machine.

SK series. From 140T-2800T as the lastest generation injection molding machine of SUNBUN group featuring the mechanical Central Locking Structure. Different with 99.9% injection machine among the market

With 100% clamping force and longer open stroke which can be use smaller machine make bigger products. Material saving 2%-6% than normal machine enjoy solid reputation from all the clients.

China Sunbun SK Series From 140T-2800T   Enjoy Germany Central Locking Technology High Pressure Plastic Injection .

Vertical Thermoplastic cheap price injection speed arrive 111-140 mm/s .

Precision OEM for many brand manufacturer.  Sunbun, Your best Plastic moulding machine. www.sunbun-machine.com

● 100% Clamping Force Ratio, 10%-20% Higher Than Tradtional One

● Less Fins On The Finished Products

● 2%-6% Raw Material Saved From Tradtional One

● Effective Production For Mold, Mold Board and Pull Rod

●Open Stroke 10%-20% Bigger Than Morlam One

● Less Deformation By CoolIng

Injection part

Clamping part

Others

Item/type	Unit	SK140 / C400			SK180/C600
System pressure	MPa	16			16
Motor power	KW	14			18.5
Heater power	KW	8.2/8.85			9.95/10.95
Quantity of temperature-control zones		1+4			1+4
Bucket capacity	kg	25			25
Oil tank capacity	L	185			230
Boundary dimension(L×W×H)	m	5×1.4×1.8			5.5×1.5×1.9
Machine weight	Ton	4.3			5.6

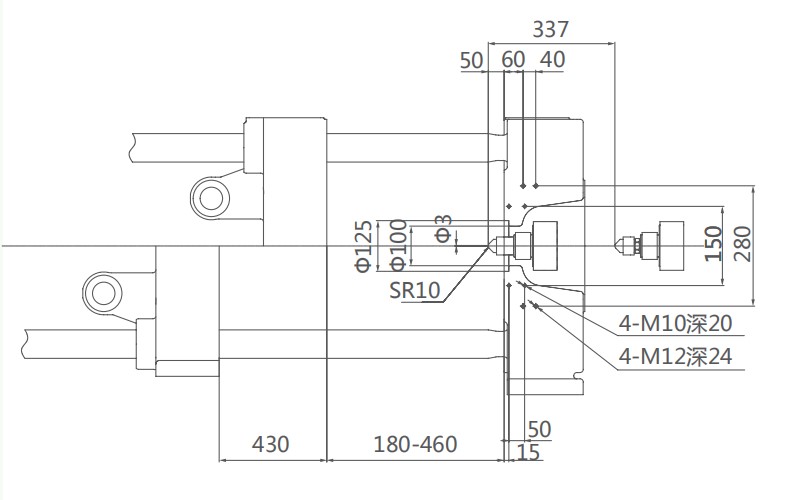

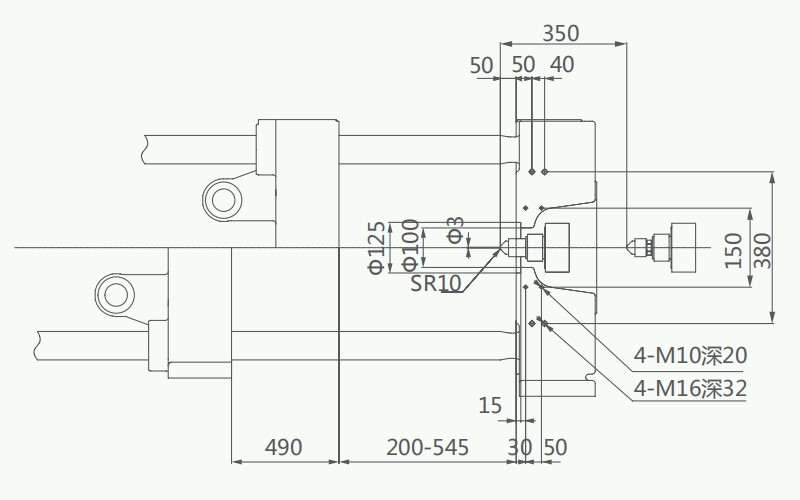

Side dimension of the molding board

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.

INJECTION SYSTEM

• The enhanced double-cylinder dual-extruding enjection structure will produce a lower back pressure in oil return during ejection. have a quicker injection speed and longer service life



• The dual linear-guide , double displacement balanced stand can improve machine barrel accuracy



• Precise screw design will dramatically improve the injection accuracy and effectively reduce the defective rate.  (38/42 Crmoal)



• The optioncal pneumatic nozzle imported with orginal package has a flexible switch device and reliable seal



• The cylinder with thicker wall and a high power heater can ensure a high plasticizing efficiency

HYDRAULIC SYSTEM

• With international High Speed Storage motor and Hydraulic Components ensure fast , effcient and long life operation



• Modualr design for High-Response oil circult and hydraulic valve plate Which have a large oil circule and free of damp effectively reduce pressure loss , speed up system response ability



• Original germany oil pipe and seals avoid oil leak.

ELECTRONIC CONTROL

• The whole electrionic control system is design for full electric and high speed injection molding machine



• Apply Up-To-Date System,  New hardware design,  intelligent interactive interface ,  A CPU for fast arithmetic speed



• Using EtherCAT/CAN  All-Date Communication technology Show clear iprovement in all technical indexes. Actsmore accurately in pressure and flow rate control



• Reserves an internet management systen and energy consumpition display which enables advantanced control modes.

CLAMPING SYSTEM

• SK Series adopts outwards toggle and excellent design ideal . with quite large bar space between four column. Which is required by different industries.



• Super large open stroke is 10%-20% bigger than normal one.  More suitable for deep cavity product



• QT500-7 Mold board is much strong for long time service .



• Adopting gear-adjusting ring with high-precision, large-scale transfer and compact structure to facilitate customer adjusting the mold thickness
