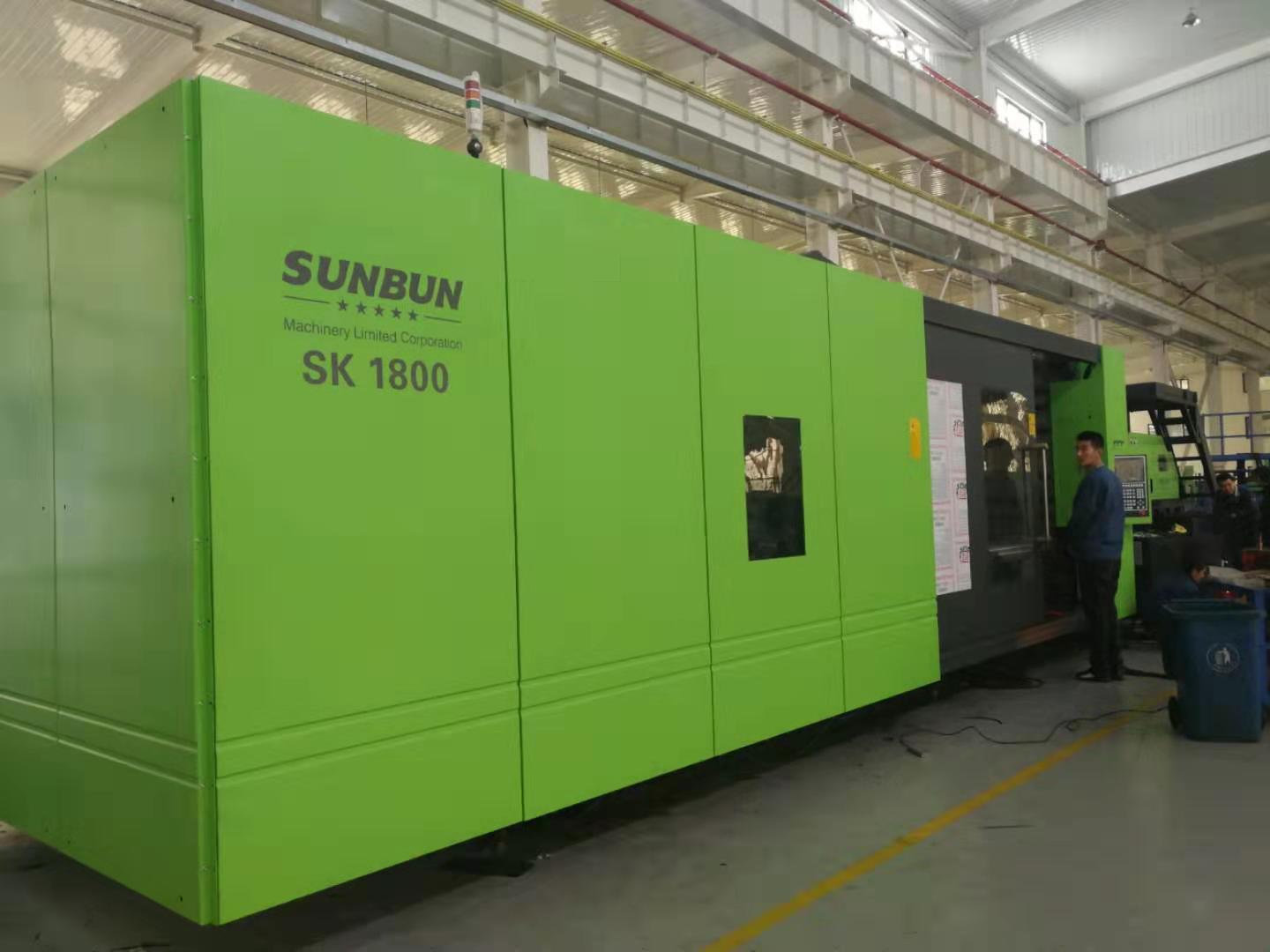

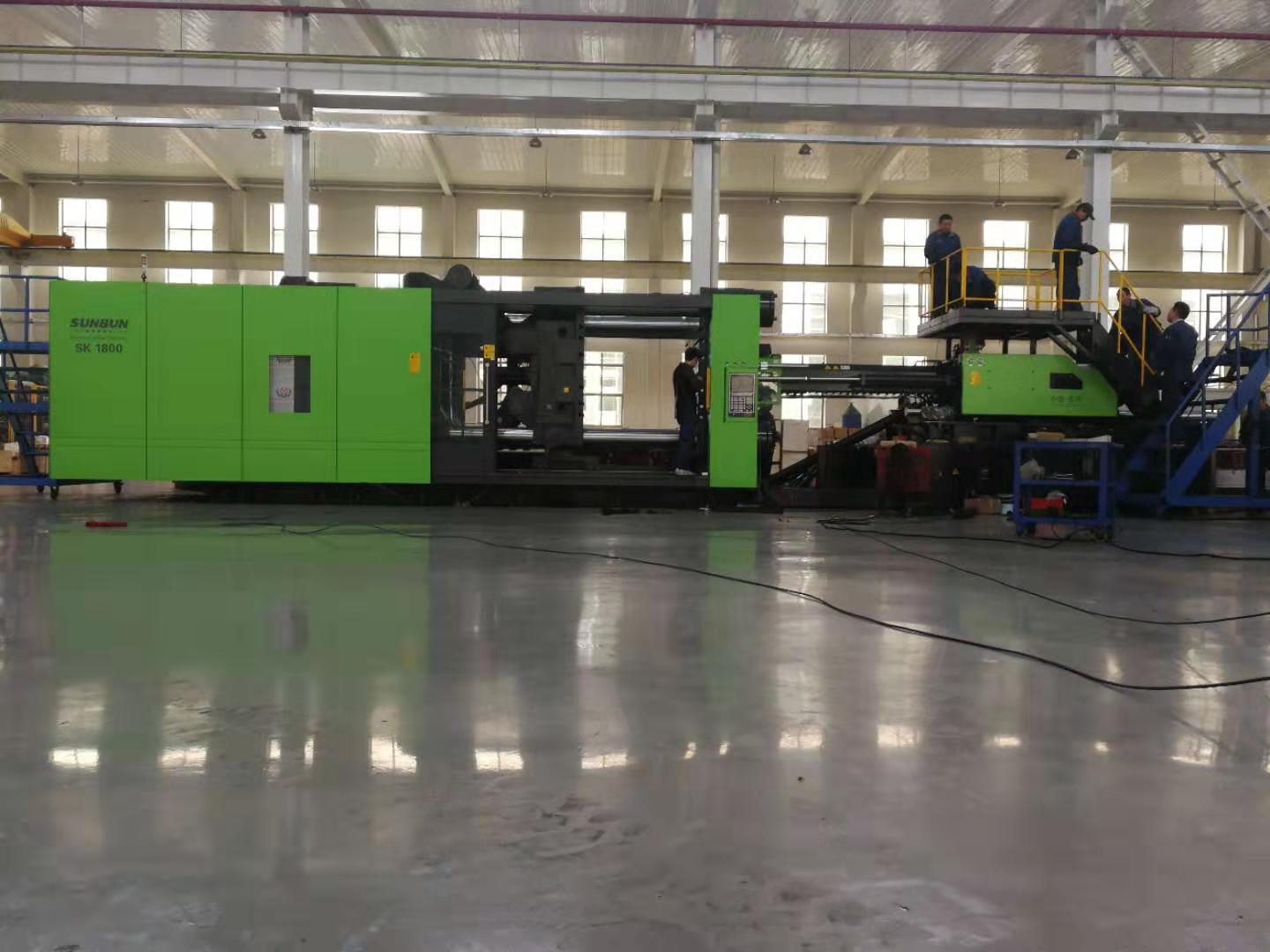

SK 1800T Servo Motor Injection Molding Machine

Central Locking Structure;With 1800T Make 1900T Product
More Details

Sunbun, Your best high speed high precision injection molding machine.



SK series. From 140T-2800T as the lastest generation injection molding machine of SUNBUN group featuring the mechanical Central Locking Structure. Different with 99.9% injection machine among the market



With 100% clamping force and longer open stroke which can be use smaller machine make bigger products. Material saving 2%-6% than normal machine enjoy solid reputation from all the clients.



China Sunbun Sk1800 is Central Locking Techology High Speed High Precision Plastic Horizontal  Injection Molding Machine.



It Enjoy 100% Clamping force Which Can With Smaller Machine Making Bigger Product.



From 140T-2800T





sk 1800t servo motor injection molding machine





● 100% Clamping Force Ratio, 10%-20% Higher Than Tradtional One



● Less Fins On The Finished Products



● 2%-6% Raw Material Saved From Tradtional One



● Effective Production For Mold, Mold Board and Pull Rod



Open Stroke 10%-20% Bigger Than Morlam One



● Less Deformation By CoolIng



Injection part

Item/typeUnitSK1800 / C 18000SK2200 / C28000
Screw type ABCDABCD
Screw diametermm130140150160150160170180
Screw diame-ter ratioL/D23.72220.518.523222120
Theoretical injection volumecm³92911077612370
14074
14756167891895321248
Injection volume (PVC)g84559806112571280713428152781724719336
Maximum rate for inject-ion to aircm³/s10261190136616561409160318092028
Injection pressureMPa195168146127189166147132
Injection strokemm700835
Maximum injection speedmm/s7779.7
Maximal Rotational Speed of Screwr/min9153

Clamping part

Item/typeUnitSK1800 / C 18000SK2200 / C28000
Clamp TonnageKN1800022000
Toggle strokemm17202000
Distance between tie barsmm×mm1620x14601760x1560
Maximum mould heightmm15001750
Minimum mould heightmm500750
Ejection strokemm400450
Ejector force forwardKN332425
Ejector force backardKN226334
Amount of die thimblePcs1+241+28

Others

Item/typeUnitSK1800 / C 18000SK2200 / C28000
System pressureMPa1616
Motor powerKW45+45+4537+47+47+47
Heater powerKW80122.9
Quantity of temperature-control zones 1+61+6
Bucket capacitykg200400
Oil tank capacityL22002500
Boundary dimension(L×W×H)m15.5x3.2x3.516.1x3.75x4.5
Machine weightTon99140

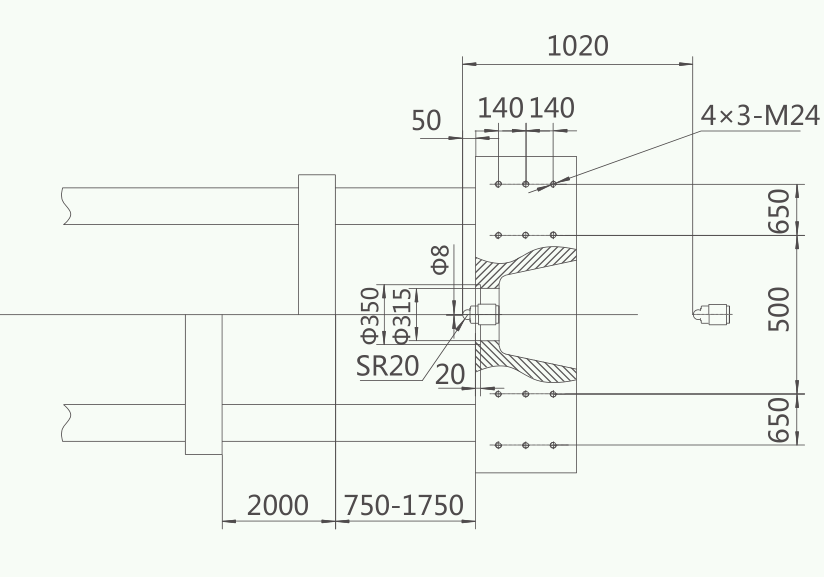

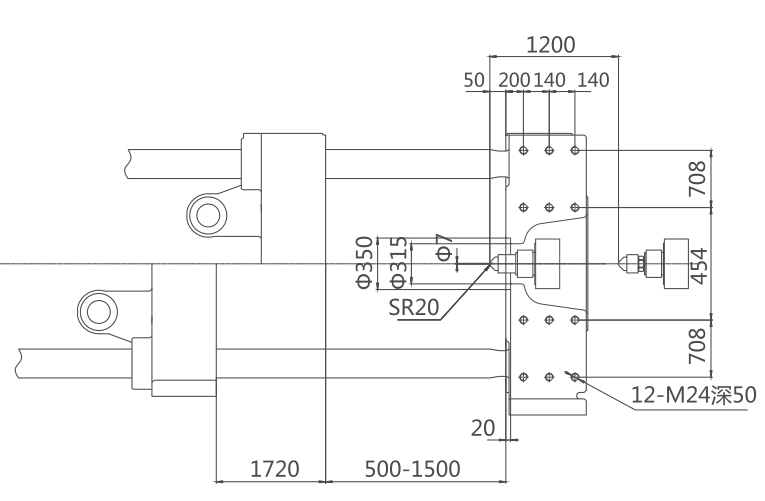

Side dimension of the molding board sk 1800t servo motor injection molding machinesk 1800t servo motor injection molding machine

INJECTION SYSTEM

  • The enhanced double-cylinder dual-extruding enjection structure will produce a lower back pressure in oil return during ejection. have a quicker injection speed and longer service life



  • The dual linear-guide , double displacement balanced stand can improve machine barrel accuracy



  • Precise screw design will dramatically improve the injection accuracy and effectively reduce the defective rate.  (38/42 Crmoal)



  • The optioncal pneumatic nozzle imported with orginal package has a flexible switch device and reliable seal



  • The cylinder with thicker wall and a high power heater can ensure a high plasticizing efficiency



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine

HYDRAULIC SYSTEM

  • With international High Speed Storage motor and Hydraulic Components ensure fast , effcient and long life operation



  • Modualr design for High-Response oil circult and hydraulic valve plate Which have a large oil circule and free of damp effectively reduce pressure loss , speed up system response ability



  • Original germany oil pipe and seals avoid oil leak.



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine

ELECTRONIC CONTROL

  • The whole electrionic control system is design for full electric and high speed injection molding machine



  • Apply Up-To-Date System,  New hardware design,  intelligent interactive interface ,  A CPU for fast arithmetic speed



  • Using EtherCAT/CAN  All-Date Communication technology Show clear iprovement in all technical indexes. Actsmore accurately in pressure and flow rate control



  • Reserves an internet management systen and energy consumpition display which enables advantanced control modes.



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine

CLAMPING SYSTEM

  • SK Series adopts outwards toggle and excellent design ideal . with quite large bar space between four column. Which is required by different industries.



  • Super large open stroke is 10%-20% bigger than normal one.  More suitable for deep cavity product



  • QT500-7 Mold board is much strong for long time service .



  • Adopting gear-adjusting ring with high-precision, large-scale transfer and compact structure to facilitate customer adjusting the mold thickness
