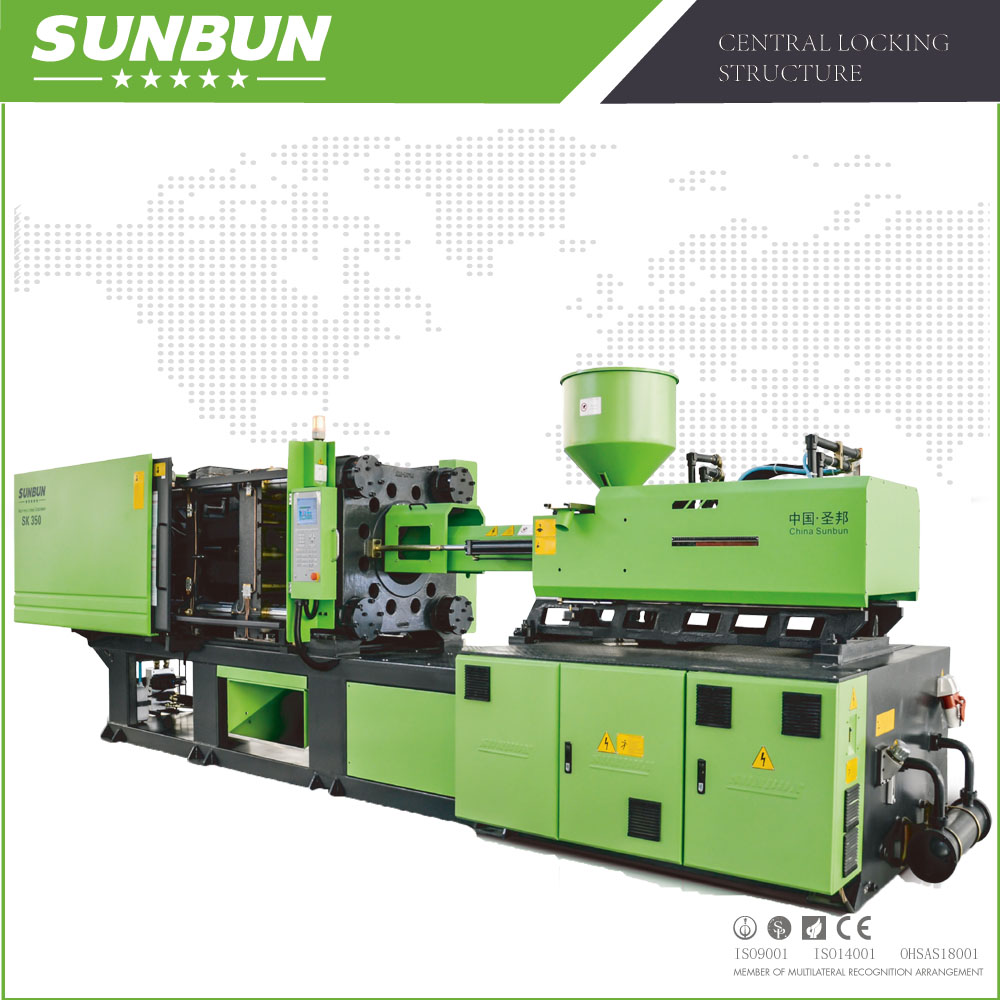

SK 230T Servo Motor Injection Molding Machine

Central Locking Structure;With 230T Make 268T Product
More Details

Sunbun, Your best high speed high precision injection molding machine.



SK series. From 140T-2800T as the lastest generation injection molding machine of SUNBUN group featuring the mechanical Central Locking Structure. Different with 99.9% injection machine among the market



With 100% clamping force and longer open stroke which can be use smaller machine make bigger products. Material saving 2%-6% than normal machine enjoy solid reputation from all the clients.



China Sunbun SK Series 230T Benchtop Small plastic Injection Molding Machine.



 Desktop Home Use For electric part making . Standard Speed from 111 mm/s .



Good Plasticizing . CE ISO UL Certified Quality Injection moulding Machine





● 100% Clamping Force Ratio, 10%-20% Higher Than Tradtional One



● Less Fins On The Finished Products



● 2%-6% Raw Material Saved From Tradtional One



● Effective Production For Mold, Mold Board and Pull Rod



Open Stroke 10%-20% Bigger Than Morlam One



● Less Deformation By CoolIng



Injection part

Item/typeUnitSK230  / C760SK280 / C1200
Screw type ABCABCD
Screw diametermm45505550556065
Screw diame-ter ratioL/D22222023212220
Theoretical injection volumecm³381471570538650774909
Injection volume (PVC)g347428519490592704827
Maximum rate for inject-ion to aircm³/s167207250190230274322
Injection pressureMPa19916113323184155132
Injection strokemm240274
Maximum injection speedmm/s11197
Maximal Rotational Speed of Screwr/min221178

Clamping part

Item/typeUnitSK230  / C760SK280 / C1200
Clamp TonnageKN23002800
Toggle strokemm550615
Distance between tie barsmm×mm580x530660x610
Maximum mould heightmm560620
Minimum mould heightmm220240
Ejection strokemm160180
Ejector force forwardKN7070
Ejector force backardKN4545
Amount of die thimblePcs1+121+12

Others

Item/typeUnitSK230  / C760SK280 / C1200
System pressureMPa1616
Motor powerKW2230
Heater powerKW12.65/14.2517.25/18.55
Quantity of temperature-control zones 1+41+4
Bucket capacitykg5050
Oil tank capacityL290350
Boundary dimension(L×W×H)m5×1.6x2.16.4x1.6x2.1
Machine weightTon7.29.3

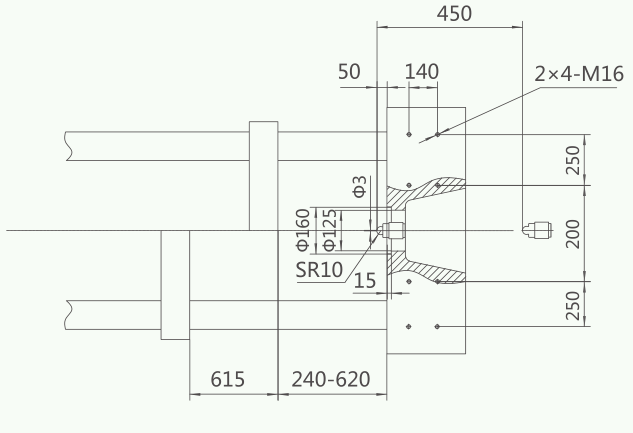

Side dimension of the molding board sk 230t servo motor injection molding machinesk 230t servo motor injection molding machine

INJECTION SYSTEM

  • The enhanced double-cylinder dual-extruding enjection structure will produce a lower back pressure in oil return during ejection. have a quicker injection speed and longer service life



  • The dual linear-guide , double displacement balanced stand can improve machine barrel accuracy



  • Precise screw design will dramatically improve the injection accuracy and effectively reduce the defective rate.  (38/42 Crmoal)



  • The optioncal pneumatic nozzle imported with orginal package has a flexible switch device and reliable seal



  • The cylinder with thicker wall and a high power heater can ensure a high plasticizing efficiency



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine

HYDRAULIC SYSTEM

  • With international High Speed Storage motor and Hydraulic Components ensure fast , effcient and long life operation



  • Modualr design for High-Response oil circult and hydraulic valve plate Which have a large oil circule and free of damp effectively reduce pressure loss , speed up system response ability



  • Original germany oil pipe and seals avoid oil leak.



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine

ELECTRONIC CONTROL

  • The whole electrionic control system is design for full electric and high speed injection molding machine



  • Apply Up-To-Date System,  New hardware design,  intelligent interactive interface ,  A CPU for fast arithmetic speed



  • Using EtherCAT/CAN  All-Date Communication technology Show clear iprovement in all technical indexes. Actsmore accurately in pressure and flow rate control



  • Reserves an internet management systen and energy consumpition display which enables advantanced control modes.



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine

CLAMPING SYSTEM

  • SK Series adopts outwards toggle and excellent design ideal . with quite large bar space between four column. Which is required by different industries.



  • Super large open stroke is 10%-20% bigger than normal one.  More suitable for deep cavity product



  • QT500-7 Mold board is much strong for long time service .



  • Adopting gear-adjusting ring with high-precision, large-scale transfer and compact structure to facilitate customer adjusting the mold thickness



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine





sk 140t servo motor injection molding machine
