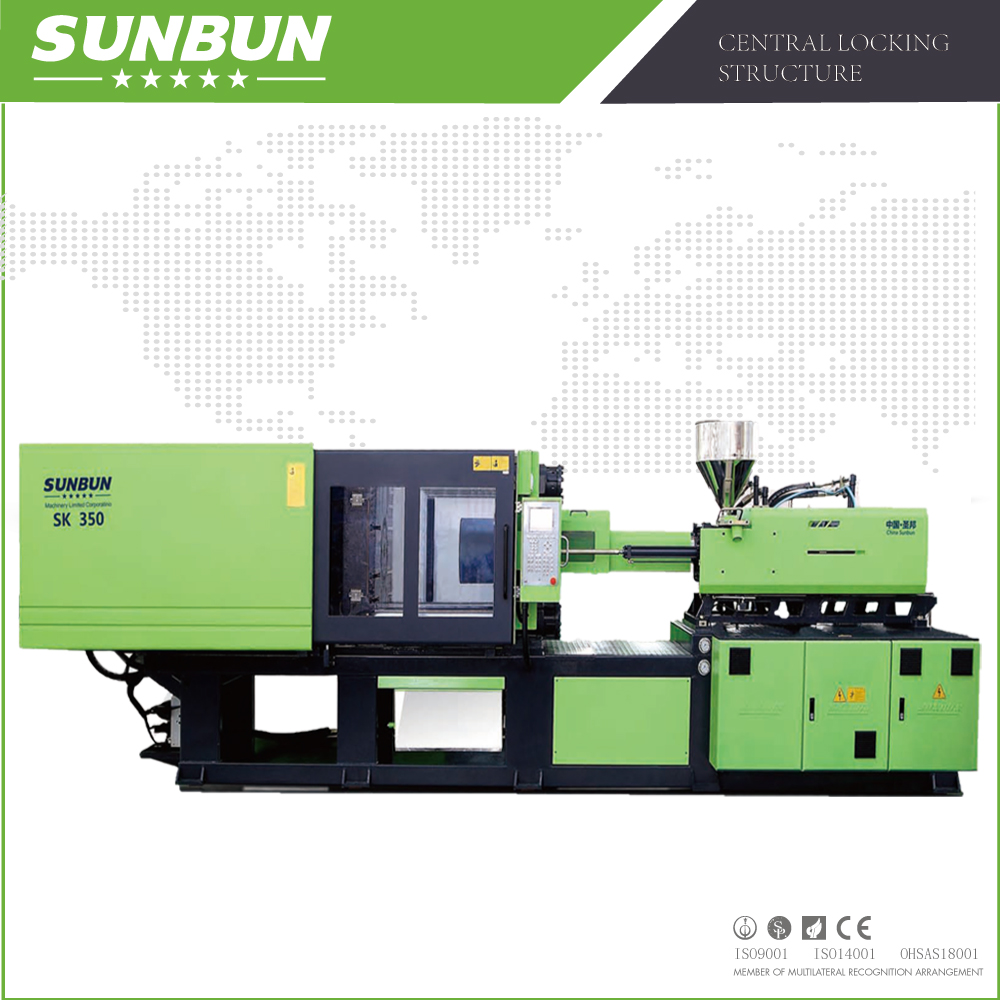

SK 350T Servo Motor Injection Molding Machine

Central Locking Structure;With 350T Make 400T Product
More Details

Sunbun, Your best high speed high precision injection molding machine.



SK series. From 140T-2800T as the lastest generation injection molding machine of SUNBUN group featuring the mechanical Central Locking Structure. Different with 99.9% injection machine among the market



With 100% clamping force and longer open stroke which can be use smaller machine make bigger products. Material saving 2%-6% than normal machine enjoy solid reputation from all the clients.



China Sunbun SK 350T Low cheap price Plastic injection molding / moulding Machine.



Two color . Doue color , Muti color there color. Good Quality Power Material Saving smart sold reputation Injection machine manufacturer.



Professional automatic full atuo electric injection machine





● 100% Clamping Force Ratio, 10%-20% Higher Than Tradtional One



● Less Fins On The Finished Products



● 2%-6% Raw Material Saved From Tradtional One



● Effective Production For Mold, Mold Board and Pull Rod



Open Stroke 10%-20% Bigger Than Morlam One



● Less Deformation By CoolIng



Injection part

Item/typeUnitSK350 / C1900SK470 / C2400
Screw type ABCDABCD
Screw diametermm606570 7565707580
Screw diame-ter ratioL/D22.52121.5 2022.52121.320
Theoretical injection volumecm³918107812501435 1211140416121834
Injection volume (PVC)g835981113813061102127814671669
Maximum rate for inject-ion to aircm³/s258302350403338392450512
Injection pressureMPa206176152132197170148130
Injection strokemm325365
Maximum injection speedmm/s92102
Maximal Rotational Speed of Screwr/min182192

Clamping part

Item/typeUnitSK350 / C1900SK470 / C2400
Clamp TonnageKN35004700
Toggle strokemm700810
Distance between tie barsmm×mm713x660765x712
Maximum mould heightmm730780
Minimum mould heightmm330330
Ejection strokemm190210
Ejector force forwardKN113113
Ejector force backardKN8282
Amount of die thimblePcs1+121+12

Others

Item/typeUnitSK350 / C1900SK470 / C2400
System pressureMPa1616
Motor powerKW3745
Heater powerKW24.95/28.5526.85/30.45
Quantity of temperature-control zones 1+51+5
Bucket capacitykg5050
Oil tank capacityL520580
Boundary dimension(L×W×H)m7.1x1.75x2.27.6x1.8x2.3
Machine weightTon1316.2
Side dimension of the molding board sk 350t servo motor injection molding machinesk 350t servo motor injection molding machine

INJECTION SYSTEM

  • The enhanced double-cylinder dual-extruding enjection structure will produce a lower back pressure in oil return during ejection. have a quicker injection speed and longer service life



  • The dual linear-guide , double displacement balanced stand can improve machine barrel accuracy



  • Precise screw design will dramatically improve the injection accuracy and effectively reduce the defective rate.  (38/42 Crmoal)



  • The optioncal pneumatic nozzle imported with orginal package has a flexible switch device and reliable seal



  • The cylinder with thicker wall and a high power heater can ensure a high plasticizing efficiency



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine

HYDRAULIC SYSTEM

  • With international High Speed Storage motor and Hydraulic Components ensure fast , effcient and long life operation



  • Modualr design for High-Response oil circult and hydraulic valve plate Which have a large oil circule and free of damp effectively reduce pressure loss , speed up system response ability



  • Original germany oil pipe and seals avoid oil leak.



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine

ELECTRONIC CONTROL

  • The whole electrionic control system is design for full electric and high speed injection molding machine



  • Apply Up-To-Date System,  New hardware design,  intelligent interactive interface ,  A CPU for fast arithmetic speed



  • Using EtherCAT/CAN  All-Date Communication technology Show clear iprovement in all technical indexes. Actsmore accurately in pressure and flow rate control



  • Reserves an internet management systen and energy consumpition display which enables advantanced control modes.



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine

CLAMPING SYSTEM

  • SK Series adopts outwards toggle and excellent design ideal . with quite large bar space between four column. Which is required by different industries.



  • Super large open stroke is 10%-20% bigger than normal one.  More suitable for deep cavity product



  • QT500-7 Mold board is much strong for long time service .



  • Adopting gear-adjusting ring with high-precision, large-scale transfer and compact structure to facilitate customer adjusting the mold thickness
