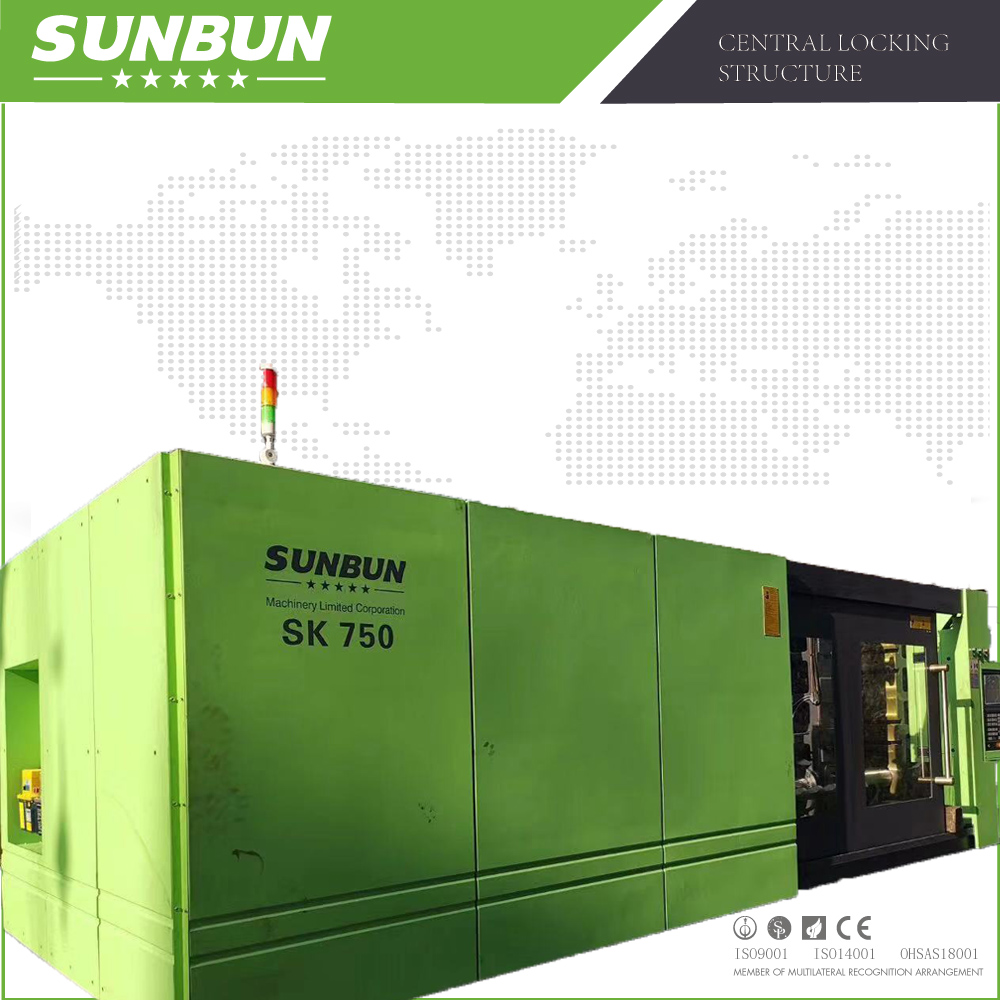

SK 750T Servo Motor Injection Molding Machine

Central Locking Structure;With 750T Make 800T Product
More Details

Sunbun, Your best high speed high precision injection molding machine.



SK series. From 140T-2800T as the lastest generation injection molding machine of SUNBUN group featuring the mechanical Central Locking Structure. Different with 99.9% injection machine among the market



With 100% clamping force and longer open stroke which can be use smaller machine make bigger products. Material saving 2%-6% than normal machine enjoy solid reputation from all the clients.



China 750T Plastic Crate Injection Moulding Machine - Sunbun Machine  .Power Saving Sunbun New Condition 750T Thermoplastic plastic Making Machine.



Best Quality Servo Motor ABS PP PC  Nylon  Acrylic  PS Rubber Foam HDPE  PPR Big Size  Injection Moulding Machine





● 100% Clamping Force Ratio, 10%-20% Higher Than Tradtional One



● Less Fins On The Finished Products



● 2%-6% Raw Material Saved From Tradtional One



● Effective Production For Mold, Mold Board and Pull Rod



Open Stroke 10%-20% Bigger Than Morlam One



● Less Deformation By CoolIng



Injection part

Item/typeUnitSK650 / C4800SK750 / C4800
Screw type ABCDABCD
Screw diametermm85901001108590100110
Screw diame-ter ratioL/D23.32219.81723.32219.817
Theoretical injection volumecm³256528753550
4295
2565287535504295
Injection volume (PVC)g23342616323139082334261632313908
Maximum rate for inject-ion to aircm³/s457512632996457512632996
Injection pressureMPa190169132113190169137113
Injection strokemm452452
Maximum injection speedmm/s8181
Maximal Rotational Speed of Screwr/min136136

Clamping part

Item/typeUnitSK650 / C4800SK750 / C4800
Clamp TonnageKN65007500
Toggle strokemm960960
Distance between tie barsmm×mm980X8701060X960
Maximum mould heightmm10501050
Minimum mould heightmm450450
Ejection strokemm210270
Ejector force forwardKN166166
Ejector force backardKN113113
Amount of die thimblePcs1+201+20

Others

Item/typeUnitSK650 / C4800SK750 / C4800
System pressureMPa1616
Motor powerKW37+3037+37
Heater powerKW4242
Quantity of temperature-control zones 1+51+5
Bucket capacitykg100100
Oil tank capacityL8501000
Boundary dimension(L×W×H)m8.9x2.5x39x2.7x3
Machine weightTon2632
Side dimension of the molding board sk 650t servo motor injection molding machinesk 650t servo motor injection molding machine

INJECTION SYSTEM

  • The enhanced double-cylinder dual-extruding enjection structure will produce a lower back pressure in oil return during ejection. have a quicker injection speed and longer service life



  • The dual linear-guide , double displacement balanced stand can improve machine barrel accuracy



  • Precise screw design will dramatically improve the injection accuracy and effectively reduce the defective rate.  (38/42 Crmoal)



  • The optioncal pneumatic nozzle imported with orginal package has a flexible switch device and reliable seal



  • The cylinder with thicker wall and a high power heater can ensure a high plasticizing efficiency



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine

HYDRAULIC SYSTEM

  • With international High Speed Storage motor and Hydraulic Components ensure fast , effcient and long life operation



  • Modualr design for High-Response oil circult and hydraulic valve plate Which have a large oil circule and free of damp effectively reduce pressure loss , speed up system response ability



  • Original germany oil pipe and seals avoid oil leak.



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine

ELECTRONIC CONTROL

  • The whole electrionic control system is design for full electric and high speed injection molding machine



  • Apply Up-To-Date System,  New hardware design,  intelligent interactive interface ,  A CPU for fast arithmetic speed



  • Using EtherCAT/CAN  All-Date Communication technology Show clear iprovement in all technical indexes. Actsmore accurately in pressure and flow rate control



  • Reserves an internet management systen and energy consumpition display which enables advantanced control modes.



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine

CLAMPING SYSTEM

  • SK Series adopts outwards toggle and excellent design ideal . with quite large bar space between four column. Which is required by different industries.



  • Super large open stroke is 10%-20% bigger than normal one.  More suitable for deep cavity product



  • QT500-7 Mold board is much strong for long time service .



  • Adopting gear-adjusting ring with high-precision, large-scale transfer and compact structure to facilitate customer adjusting the mold thickness
