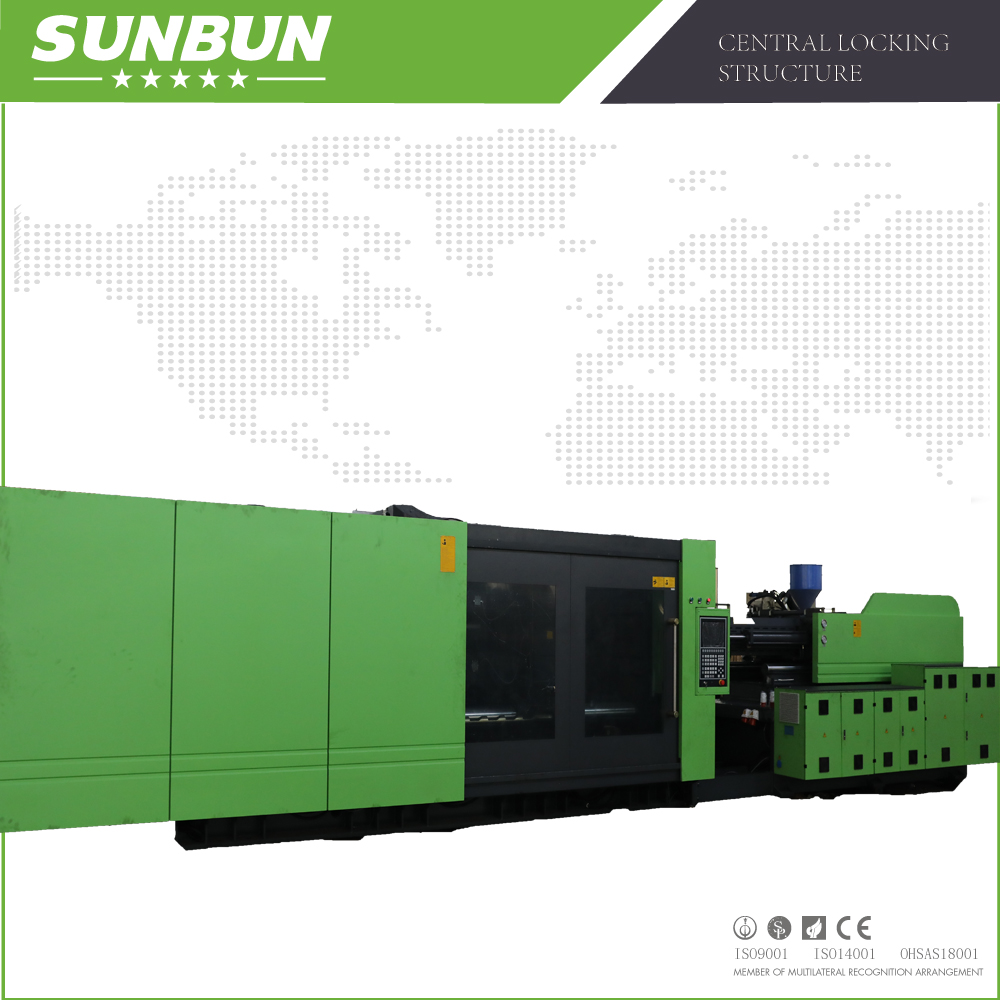

SK 850T Servo Motor Injection Molding Machine

Central Locking Structure;With 850T Make 900T Product
More Details

Sunbun, Your best high speed high precision injection molding machine.



SK series. From 140T-2800T as the lastest generation injection molding machine of SUNBUN group featuring the mechanical Central Locking Structure. Different with 99.9% injection machine among the market



With 100% clamping force and longer open stroke which can be use smaller machine make bigger products. Material saving 2%-6% than normal machine enjoy solid reputation from all the clients.



Best China  Sunbun 850T High Effeciency 6% Material Saving Plastic Making Machine .



Cheap Price Low Cost Plastic Molding Machine for sales. Good Quality Long warrenty for max 5 years.



Precision IML Injection Molding Machine manufacturers From 140T-2800T www.sunbun-machine.com





● 100% Clamping Force Ratio, 10%-20% Higher Than Tradtional One



● Less Fins On The Finished Products



● 2%-6% Raw Material Saved From Tradtional One



● Effective Production For Mold, Mold Board and Pull Rod



Open Stroke 10%-20% Bigger Than Morlam One



● Less Deformation By CoolIng



Injection part

Item/typeUnitSK850 / C7000SK1000 / 7000
Screw type ABCDABCD
Screw diametermm9010011012090100110120
Screw diame-ter ratioL/D24.4222017.524.4222017.5
Theoretical injection volumecm³319439434771
5677
3194394347715677
Injection volume (PVC)g29073588434151662907358843415166
Maximum rate for inject-ion to aircm³/s49961674510804996167451080
Injection pressureMPa219178147117219178147117
Injection strokemm502502
Maximum injection speedmm/s8686
Maximal Rotational Speed of Screwr/min129129

Clamping part

Item/typeUnitSK850 / C7000SK1000 / 7000
Clamp TonnageKN850010000
Toggle strokemm11001100
Distance between tie barsmm×mm1120x10301120x1030
Maximum mould heightmm11001100
Minimum mould heightmm450450
Ejection strokemm270300
Ejector force forwardKN166229
Ejector force backardKN113167
Amount of die thimblePcs1+201+16

Others

Item/typeUnitSK850 / C7000SK1000 / 7000
System pressureMPa1616
Motor powerKW45+3745+45
Heater powerKW50.150.1
Quantity of temperature-control zones 1+51+5
Bucket capacitykg100100
Oil tank capacityL12001200
Boundary dimension(L×W×H)m10x2.7x310x2.7x3
Machine weightTon384
Side dimension of the molding board sk 850t servo motor injection molding machinesk 850t servo motor injection molding machine

INJECTION SYSTEM

  • The enhanced double-cylinder dual-extruding enjection structure will produce a lower back pressure in oil return during ejection. have a quicker injection speed and longer service life



  • The dual linear-guide , double displacement balanced stand can improve machine barrel accuracy



  • Precise screw design will dramatically improve the injection accuracy and effectively reduce the defective rate.  (38/42 Crmoal)



  • The optioncal pneumatic nozzle imported with orginal package has a flexible switch device and reliable seal



  • The cylinder with thicker wall and a high power heater can ensure a high plasticizing efficiency



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine

HYDRAULIC SYSTEM

  • With international High Speed Storage motor and Hydraulic Components ensure fast , effcient and long life operation



  • Modualr design for High-Response oil circult and hydraulic valve plate Which have a large oil circule and free of damp effectively reduce pressure loss , speed up system response ability



  • Original germany oil pipe and seals avoid oil leak.



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine

ELECTRONIC CONTROL

  • The whole electrionic control system is design for full electric and high speed injection molding machine



  • Apply Up-To-Date System,  New hardware design,  intelligent interactive interface ,  A CPU for fast arithmetic speed



  • Using EtherCAT/CAN  All-Date Communication technology Show clear iprovement in all technical indexes. Actsmore accurately in pressure and flow rate control



  • Reserves an internet management systen and energy consumpition display which enables advantanced control modes.



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine



sk 140t servo motor injection molding machine

CLAMPING SYSTEM

  • SK Series adopts outwards toggle and excellent design ideal . with quite large bar space between four column. Which is required by different industries.



  • Super large open stroke is 10%-20% bigger than normal one.  More suitable for deep cavity product



  • QT500-7 Mold board is much strong for long time service .



  • Adopting gear-adjusting ring with high-precision, large-scale transfer and compact structure to facilitate customer adjusting the mold thickness
